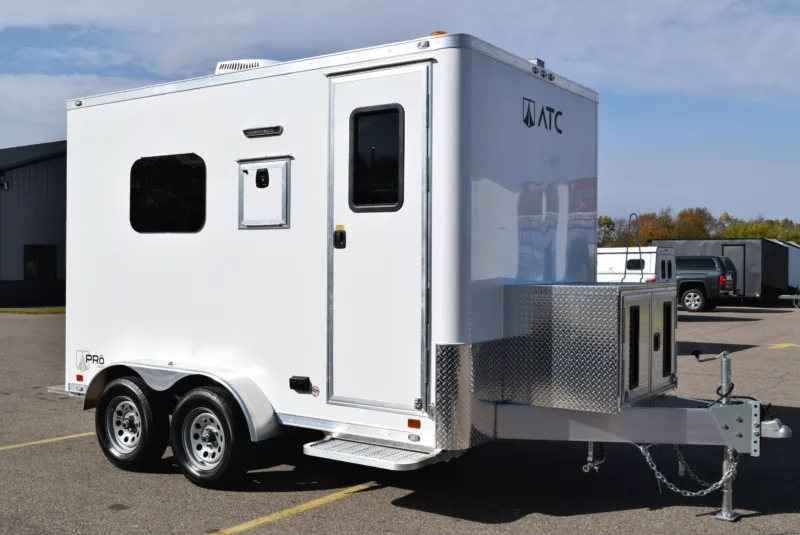

Fiber Optic Splicing Trailer

ATC Fiber Optic Splicing Trailers

Packaged for maximum functionality and value, ATC Fiber Optic Splicing Trailers are the perfect solution for your crew, offering Flexible Storage Locations, Dual Layered Cable Access Doors, 4K Generator, Exterior Access Storage and Much More! Offeried in a 6x10 single axle or tandem axle 7x12. Plus Package Available For Increased Convenience and Larger Generator Also Available.  See below for the standard specifications and package info.

Discounts Available on Fleet Orders.

7x12 FIBER OPTIC SPECIFICATIONS:

FRAME

#3500 DEXTER TORSION AXLES – EZ LUBE HUBS – ELECTRIC BRAKES

ALL TUBE CONSTRUCTION

COUPLER - ADJUSTABLE 2-5/16” - 20,000#

16” O/C FLOOR, WALL & ROOF CROSS MEMBERS

FLAT FLOOR DESIGN

FULL PERIMETER ALUMINUM FRAME

SKID PLATES

FLAT FRONT DESIGN

24 GALLON IN-FRAME FUEL TANK

TOP WIND JACK - 5000# - ZINC

24” REAR STABILIZER JACKS - 5000#

ST205/75R15/LRD - RADIAL TIRE ON GREY MOD

SPARE ST205/75R15/LRD - RADIAL TIRE ON GREY MOD

EXTERIOR SPARE TIRE MOUNT

12” EXTENDED TRIPLE TUBE TONGUE

TRUCK PLUG - 7 WAY

8” ALUMINUM FRAME

EXTERIOR

SCREWLESS EXTERIOR ALUMINUM - .030 - WHITE

ALUMINUM FENDERS

24” ATP GRAVEL GUARD WITH J RAIL

ONE PIECE ALUMINUM ROOF

COLOR MATCHED FRONT & REAR VERTICALS & REAR HEADER

3” UPPER & LOWER RUB RAILS

14” MANUAL ROOF VENT

(2) 30” X 22” SLIDER WINDOW WITH SCREEN

FIXED STEP - 84” X 12” - REAR ENTRANCE - ALUMINUM TUBE

WHEEL CHOCKS

DOORS

32” X 78” FLUSH LOCK 405 SERIES SIDE DOOR

28” X 78” FLUSH LOCK 405 SERIES REAR DOOR

32” ALUMINUM SLIDE IN/OUT STEP (SIDE DOOR)

TINTED WINDOW ON DOORS

(2) DUEL LAYERED & LOCKABLE CABLE ACCESS DOORS


INTERIOR

7’ INTERIOR HEIGHT

(2) 48" ALUMINUM SHELVES

SCREWLESS ALUMINUM INTERIOR CEILING & WALLS

COLOR MATCHED COVES

1” EPS INSULATION IN CEILING AND WALLS

BLACK COIN TPO FLOORING

FIRE EXTINGUISHER

CARBON MONOXIDE DETECTOR

BASIC FIRST AID KIT

72” X 24” LAMINATE COUNTER-TOP

36" DOUBLE DOOR CABINET

36" DOUBLE DOOR CABINET WITH DRAWER

48" UPPER CABINET

ELECTRICAL

(2) 12V AGM BATTERY

MANUAL POWER CUT-OFF SWITCH

50 AMP BREAKER BOX - 60 AMP CONVERTER - 12V FUSE PANEL

POWER INLET - MOTORBASE - 50A W/ SHORE CORD - 25’

12V LED CLEARANCE & TAIL LIGHTS

(2) ROOF MOUNTED STROBE LIGHTS

36” DIRECTIONAL LIGHT BAR

(5) 120V 15A INTERIOR RECEPT

(1) 120V 15A GFI PROTECTED EXTERIOR RECEPTS

(8) ROUND HIGH OUTPUT LED LIGHTS

4.0 KW ONAN GAS GENERATOR - REMOTE START - FUEL GAUGE

50A AUTO TRANSFER SWITCH

HEATING & AIR CONDITIONING

A/C - 13,500 BTU - LOW PROFILE - 10.5” - WHITE

WALL MOUNT HEATER - 120V - 1000W - 5120 BTU - ELECTRIC

Plus Package Highlights

- Exterior baggage door

- 72" wide lower aluminum cabinet

- 24" wide 5 drawer cabinet

- 144" upper aluminum cabinet

- (2) 24" lower cabinet w/ drawer

Available Upgrades

- 5.5K Generator with 1500W Heater

For More Information Please Call 877-327-0888


Additional Information and Photos Available in Listings Below
